526 Series Switchover

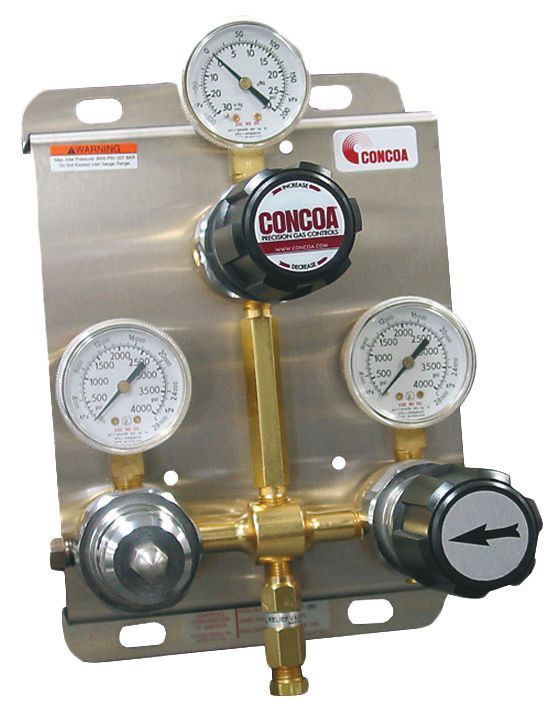

The 526 Series Switchover operates by opposing pressure differential. It is designed to automatically switch from the primary side to the reserve side to deliver a continuous supply of high purity, non-corrosive gas. The system comes with either flexible hoses for use with two cylinders, or manifold connectors for use with the CONCOA 52 Series Maniflex Modular Manifold. Due to pressure differential considerations, an integral line regulator is available to maintain constant downstream pressure. Additional options for the 526 Series manifold switchover include purge valves to allow purging after cylinder changeover and outlet valves to allow isolation of the pipeline. For more flexibility in supply mode including optimization of high pressure, high purity gas applications, consider the CONCOA fully automatic, computer-controlled IntelliSwitch.

Features

• Metal-to-metal Diaphragm Seal prevents gas contamination
• 400 Series Brass Regulators with CAPSULE® Seat Design provide 360° filtration
• Single Knob Priority Valve permits easy switch of cylinder priority
• Optional Outlet Valve allows isolation of pipeline
• Optional Purge Valve enables purging after cylinder changeover
• Optional Intrinsic Safety Barriers support flammable gas service or use in hazardous environments
• Optional Altos 2™ Remote Alarm delivers audible and visible alert before switchover occurs

Specifications

• Max Inlet Pressure: 3000 PSIG (210 BAR); 4500 PSIG (310 BAR) optional
• Outlet Connections: 1/4" MNPT (without line regulator); 1/4" FNPT (with line regulator)
• Regulator Bodies: Brass barstock
• Gauges: 2" (50 mm)
• Diameter brass Diaphragms: 316L Stainless steel
• Seats: PTFE (line regulators); PCTFE (inlet regulators)
• Filters: 10-micron sintered bronze
• Internal Seals: PTFE
• Helium Leak Integrity: 1 x 10-8 scc/sec
• Cv: 0.1
• Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Standard Transducers (optional): 0-6000 PSIG (4-20 mA output)
• Intrinsically Safe Transducers (optional): 0-5000 PSIG (4-20 mA output)
• Conformances: Cleanliness meets or exceeds CGA G-4.1; PED 2014/68/EU; ANSI/ASME B40.1; CRN OH5216.5; CRN OH15806.5
