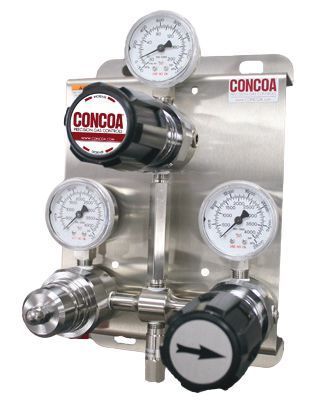

527 Series Switchover
$0.00
Price incl.
Sales tax (2.9%)
$0.00
In stock
Product Details
Call for Pricing at (833) 427-7847
The 527 Series Switchover is a stainless steel, pressure differential manifold designed to automatically switch from the primary side to the reserve side to deliver a continuous supply of ultra-high purity or corrosive gas. The 527 manifold switchover comes with either flexible hoses for use with one cylinder per side, or manifold connectors for use with the CONCOA 52 Series Maniflex Manifold System to increase storage capacity. The 527 may be purchased with or without a variety of options, such as diaphragm valves, manifold connectors, mini-manifold connectors, flexible pigtails, or with open inlet ports. Due to pressure differential considerations, an integral line regulator is available to maintain constant downstream pressure. Optional Altos 2TM remote alarm capability provides audible and visual warnings that a switchover is about to occur.
Typical Applications
- Gas Chromatograph Carrier and Support Gases
- Ultra-High Purity and Research Grade Gases
- Pure and Mixed Process Gases
- Corrosive Gases
Features
- 400 Series Stainless Steel Regulators with CAPSULE® Seat Design provide 360° filtration
- Metal-to-metal Diaphragm Seal prevents gas contamination
- Single Knob Priority Valve permits easy switch of cylinder priority
- Purge Valve enables purging after cylinder changeover
- Optional Altos 2™ Remote Alarm delivers audible and visible alert before switchover occurs!
- Optional Line Regulator maintains stable pressure during a changeover
- Check Valve in Optional Regulator Hose Inlet Gland prohibits contamination and backflow
Specifications
- Max Inlet Pressure: 3000 PSIG (210 BAR); 4500 PSIG (310 BAR) optional
- Outlet Connections: 1/4" MNPT (without line regulator); 1/4" FNPT (with line regulator)
- Regulator Bodies: 316L Stainless steel
- Gauges: 2" (50 mm) Diameter stainless steel
- Diaphragms: 316L Stainless steel
- Seats: PTFE (line regulators); PCTFE (inlet regulators)
- Filters: 10-micron 316 stainless mesh
- Internal Seals: PTFE
- Helium Leak Integrity: 1 x 10-8 scc/sec
- Cv: 0.1
- Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Standard Transducers (optional): 0-6000 PSIG (4-20 mA output)
- Intrinsically Safe Transducers (optional): 0-5000 PSIG (4-20 mA output)
- Conformances: Cleanliness meets or exceeds CGA G-4.1; PED 2014/68/EU; ANSI/ASME B40.1; CRN OH5216.5; CRN OH15806.5
