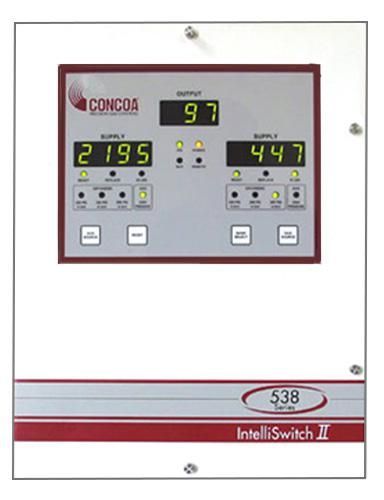

538 Series IntelliSwitch™ II
$0.00
Price incl.
Sales tax (2.9%)
$0.00
In stock
Product Details
Call for Pricing at (833) 427-7847
The fully automatic 538 Series IntelliSwitch II electronic changeover manifold is CONCOA’s revolutionary, web-enabled gas management system. The IntelliSwitch II features proprietary onboard I-Link web server technology, allowing remote monitoring, secure system configuration, and e-mail notification of real-time system status and events. It is ideally suited to interchangeable service/continuous supply in analytical laboratories, chemical processes, instrumentation, and critical gas supply applications. The IntelliSwitch II gas manifold offers continuous gas pressure and flow control from liquid cylinders, high-pressure cylinders, or a combination of the two sources, allowing the end-user to select the most economical gas supply mode with the simple push of a button. Proprietary software logic lowers yearly gas costs by eliminating liquid cylinder vent loss and excess residual return, which makes the IntelliSwitch II™ the perfect choice for laboratory, pilot plant, or process applications.
Typical Applications
- High Purity, Non-corrosive, Non-flammable Gas Supply
- Gas Chromatograph and Mass Spec Carrier and Support Gases/li>
- Microbulk Changeover Supply
- Incubator Carbon Dioxide and Nitrogen Gas Supply
- Biotech, Pharmaceutical, and Forensic Gas Systems
- Central Gas Supply System for Laboratory, Research, or Process Plants
- Inductively Coupled Plasma (ICP) and ICP-Mass Spec Continuous Gas Supply
Features
- Microprocessor Control provides fully automatic priority assignment
- Remote and Field-adjustable Software permits process flexibility and remote monitoring
- On-site or Remote Source Selection ensures effective management of liquid cylinder or high-pressure supply source
- Onboard Web Server and Remote Software streamlines monitoring and control functions
- Low-loss Technology reduces residual return to lower operational costs
- Electronic Economizer eliminates liquid cylinder vent loss
- NEMA 4 Enclosure protects against environmental factors
Specifications
- Maximum Inlet Pressure: 3000 PSIG (210 BAR)
- Cv: 1.0
- Filter: 40-micron
- Temperature Range: 0°F to 100°F (-18°C to 40°C)
- Inlet/Outlet Connections: 1/2 in FNPT
- Valve Bodies: Brass barstock
- Valve Stems: 316L Stainless steel
- Valve Seats: PCTFE
- Seals (pressure control): PTFE and PCTFE
- Seals (switching mechanism): Chloroprene (not recommended for oxygen service) or FKM (not recommended for carbon dioxide or nitrous oxide service)
- Power Requirements: 100-240 VAC 50/60 Hz @.55A
- Communication Connectivity: Two-channel NO/NC output relay alarm contacts
- Enclosure: NEMA 4, powder-coated steel
- Weight: 67 lbs. (30.4 kg)
- Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; PED 2014/68/EU; CE marked; CRN OH17950.5
