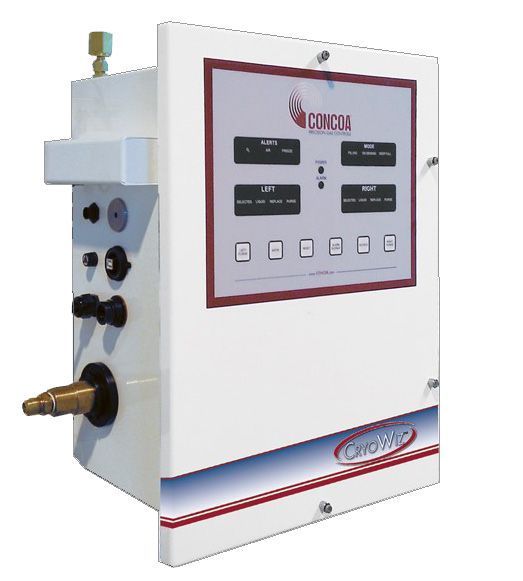

577 Series CryoWiz™
$0.00
Price incl.
Sales tax (2.9%)
$0.00
In stock
Product Details
Call for Pricing at (833) 427-7847
The CONCOA CryoWiz™ delivers a continuous supply of liquid nitrogen from a primary and secondary source automatically with no temperature change. The CryoWiz uses a proprietary algorithm and precise pressure and temperature sensors to monitor the demand for and supply of the liquid nitrogen. With a unique insulated switching mechanism, high flow pneumatic valves, and hot gas bypass programming, the CryoWiz automatically switches sources with virtually no change in delivered cryogenic temperature. Ensuring both consistent temperature and continuous supply, the CryoWiz is ideal for critical cryogenic applications such as cryopreservation, control rate freezers, and environmental chambers.
Typical Applications
- Cryopreservation
- Control Rate Freezers
- Environmental Chambers
- Subambient Gas Chromatography
- Cryogenic Research
Features
- High Flow Pneumatic Control Valves accommodate multiple freezers
- Automatic Proprietary Control Algorithm ensures continuous efficient supply of liquid nitrogen
- Insulated Switching Mechanism reduces heat transfer to deliver cryogen with no change in temperature
- Dynamic Hot Gas Bypass minimizes flash loss of liquid
- Ethernet Port/Webserver permits remote monitoring of functions, e-mail alerts, and remote configuration
- Oxygen Deficiency Monitor Input ensures OSHA safe use
- Local Audible and Visual Alarm enables on-board emergency monitoring
- Selectable “Keep-full" or "On-demand" Operation Mode supports new applications with push of a button
- Optional Altos 2 / Advantium 16 Remote Alarm provides audible and visible warnings of cylinder depletion
Specifications
- Maximum Inlet Pressure: 35 PSIG (2.5 BAR)
- Internals: Brass barstock
- Cryogenic Relief Valves: 50 PSIG (3.5 BAR); 1/2" FNPT
- Hot Gas Bypass: 1/2" FNPT
- Inlet/Outlet Connections: CGA 295
- Drain: 1/2" PVC Alarm
- Output: 1 or 5 dry contact NC
- Alarm Input: O2 deficiency monitor relay
- Pneumatic Gas: 95 PSIG (6.5 BAR) -105 PSIG (7.5 BAR)
- Pneumatic Input: 1/8" FNPT
- Communication Ports: Ethernet; USB (maintenance only)
- Enclosure: NEMA 12 Powder coated steel
- Power: 90-264 VAC, 47-63 Hz (US, UK, European, Australian, and Chinese adapters included)
- Weight: 40 lbs (18 kg)
- Conformances (power supply): Safety approvals CCC, CE, FCC, PSE, RCM, UKCA, UL/cUL ; CRN OH17950.5
- Conformances: CE marked; Cleanliness meets or exceeds CGA G-4.1; CRN OH5216.5
