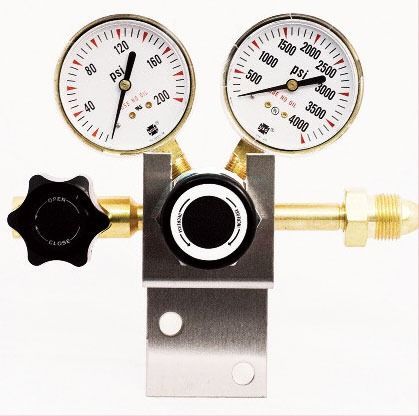

The Series 3200 two stage regulators are designed and constructed for both high purity and general purpose applications. While compact in design these regulators provide outstanding performance, comparable to most larger diaphragm competitive models. They are ideally suited for use with gases and gas mixtures having a full cylinder pressure of 1000 psig or more. The construction is rugged enough for the plant, yet versatile enough for the laboratory.
Features
High purity diffusion resistant, metal diaphragm construction on both stages.
Encapsulated seats on both stages.
Diffusion resistant, brass diaphragm packless control valve installed on outlet as standard.
Designed to pass an inboard helium leak-rate test of 1x10-9 cc per sec.
All parts ultrasonically cleaned prior to assembly.
