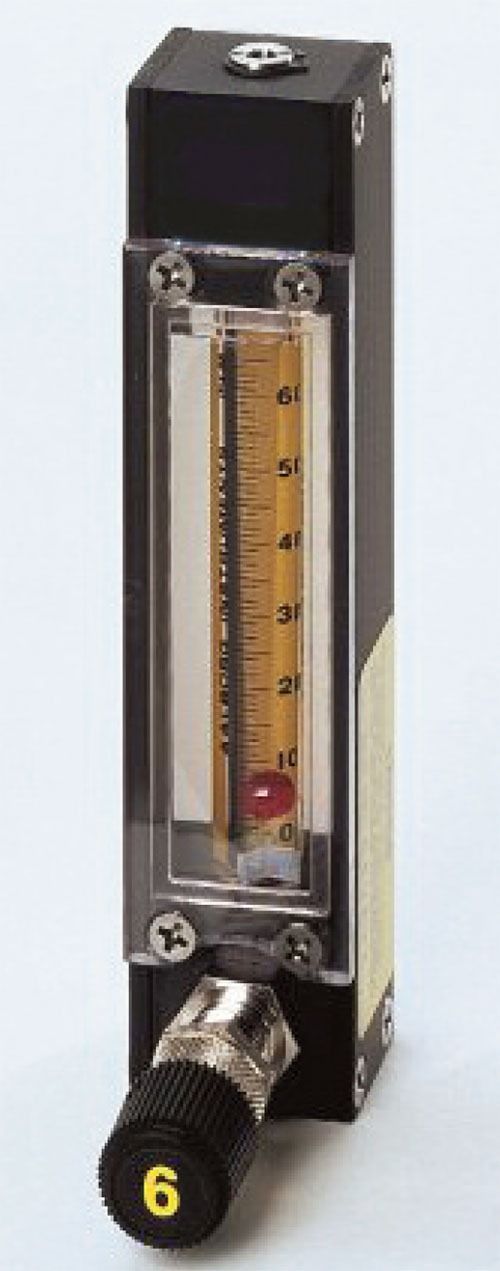

Flowmeter - Series 7965

The Series 7965 flowmeters use 65mm flow tubes with a single float. They are calibrated to read directly in SCCM, SLPM or SCFH of air. Correction factors are available for a number of common gases. The Series 7965 flowmeters are available in chrome plated brass or stainless steel.

Specifications

• Maximum Inlet Pressure: 200 psig
• Temperature Range: -20° to +250°F
• Valve: Standard or high accuracy needle valve
• Dimensions: 1 1/4"W x 5 1/2"H x 2 3/4"D
• Accuracy: ±5% full scale
• Repeatability: ±0.25% of scale reading
• Inlet and Outlet: 1/4" NPT female standard
