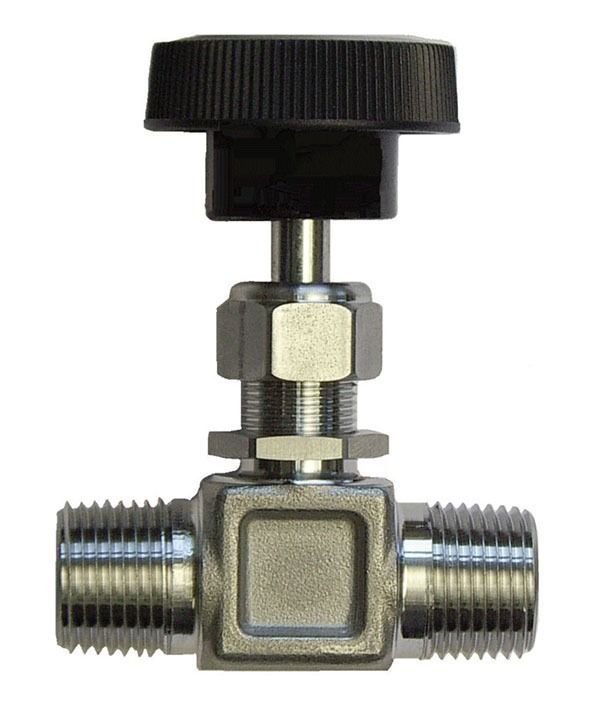

Miniature Forged Needle Valves Series 8100

These valves are used in a wide variety of industrial and laboratory applications. They offer excellent flow control and both the brass and stainless steel models have Teflon® packing.

Features

• Max. operating pressure:
  Monel® 3500 psig
  brass 3000 psig
  stainless steel 6000 psig
• Operating temperature range: -65° to 100°F
• Flow coefficient(Cv):
  Monel® 0.24
  brass 0.048
  stainless steel 0.48
