Oxygen Traps Series 6300

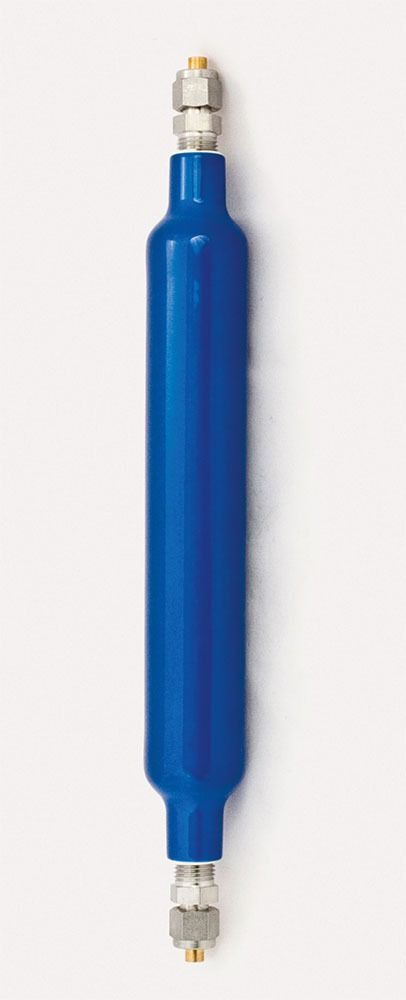

These Series 6300 oxygen traps contain a highly active, metal-containing, inert supported reagent filled into a one-piece aluminum container. The trap is capable of reducing the oxygen content of a gas stream down to 99.99998% of its original concentration. Each unit is filled under a heated flow of ultra high purity helium to eliminate the need for extensive purging prior to GC or GC/MS operation.

Specifications

• Reduces oxygen levels to less than 15ppb.
• Scrubbing agent sphere size optimized to achieve maximum surface area and capacity to provide twice the surface area and capacity of "look-alike" units.
• Filter design and aspect ratio prevents channeling and promotes even flow and efficient scrubbing.
• Inlet and outlet fitted with 40 micron stainless steel frits.
• All metal construction.
• Bed material treated with ultra high purity helium.
• Operating pressure: 250 psig
• Oxygen removal capacity: 6300 525 mg | 6350 4200 mg
• Dimensions: 6300 1.25" O.D. x 11.25" long | 6350 2 3/8" O.D. x 17" long
