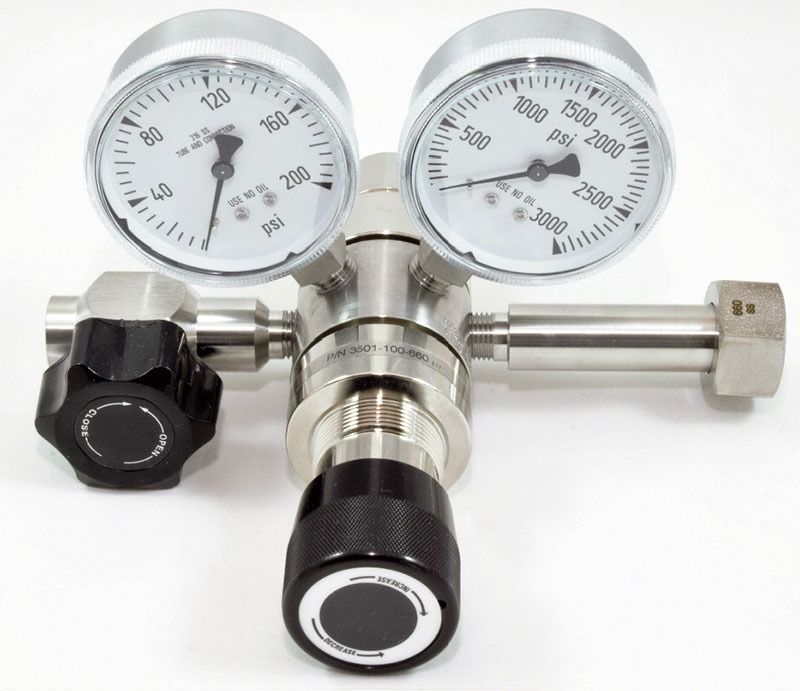

The Series 3500 two stage regulators are designed and constructed for both high purity and general purpose applications. While compact in design these regulators provide outstanding performance, comparable to most larger diaphragm competitive models. They are an excellent choice for use with ultra high purity gases or gas mixtures having a full cylinder pressure of 1000 psig or more. They are rugged and versatile enough for the laboratory or plant.
Features
High purity diffusion resistant, metal diaphragm construction on both stages.
Encapsulated seats on both stages.
Diffusion resistant, stainless steel diaphragm packless control valve installed on outlet as standard.
Designed to pass an inboard helium leak-rate test of 1x10-9 cc per sec.
All parts ultrasonically cleaned prior to assembly.
