Stainless Steel Manifolds

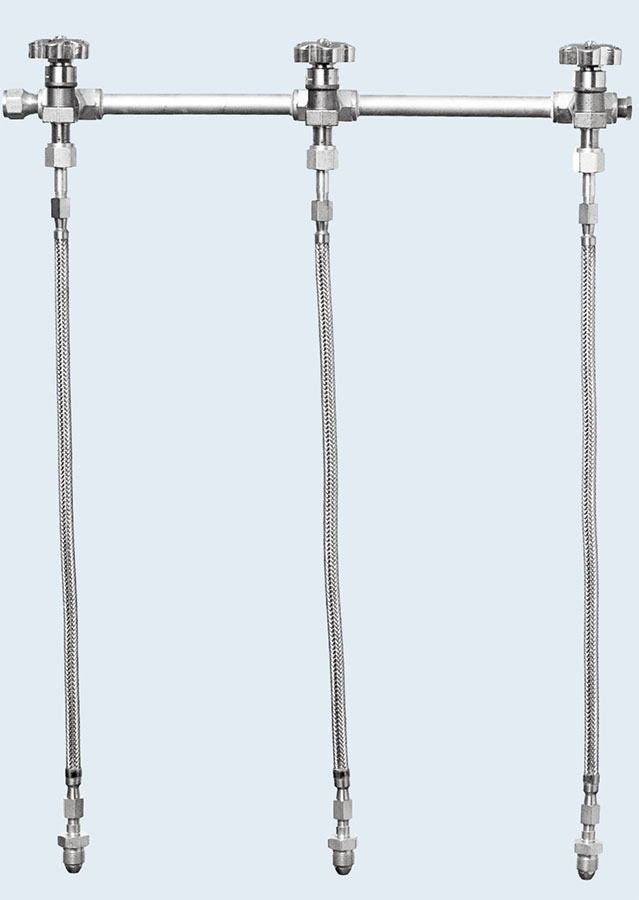

These manifolds are constructed of 1/2" 316 stainless steel pipe and fittings heliarc welded at each joint. Station valves are the diaphragm packless type for high purity service and are installed with Teflon tape so that they may be easily replaced in the field if necessary. All header pigtail connections are CGA 346 to help ensure that pigtails are installed properly. A plug is inserted in the last tee to allow for the addition of future cylinder stations if required. Suitable brackets for mounting the manifold to a wall are provided.

Features

• Diaphragm packless station valves for high purity.
• 3000 psig service pressure(4500 and 6000 psig available).
• Cleaned for high purity service.
• Standard CGA 346 header pigtail connections when valves are installed, non-valve headers are provided with mating connections on the pigtails.
